Carcass Panel Prefabricated System
21 April 2025
Technical Specifications of Carcass Panel Prefabricated System
Construction
The Carcass panel system features a structural framework composed of purlins, trusses, frames, columns, and beams. The carcass elements are manufactured using StructureRobot technology, with all coverings completed in the factory. Once prepared, these components are assembled on-site using bolted joints and specialized connectors.
Wall

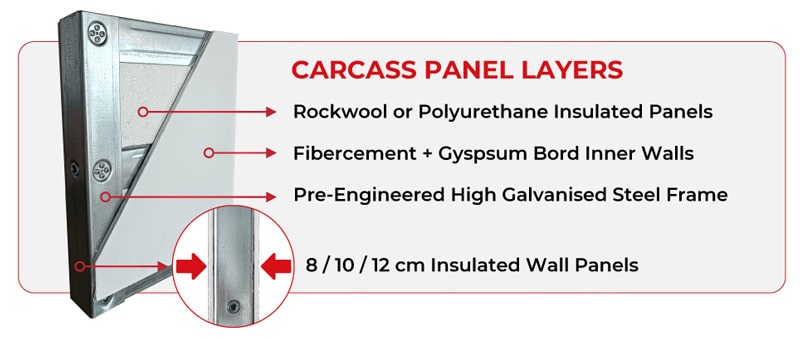

The load-bearing structure of the wall panels is made from galvanized steel profiles, with both surfaces factory-clad using A-1 class non-combustible Natural Cement Boards.
Optional exterior finishes include:
- Patterned Natural Cement Board
- Fuga Patterned Natural Cement Board
- Turksiding Patterned Natural Cement Board
Roof
The roof’s load-bearing structure is constructed from galvanized steel profiles and is clad with natural galvanized corrugated steel sheets as standard.
Optional roofing materials include:
- Painted galvanized corrugated steel sheets
- Sandwich roof panels
- Premium bitumen-based waterproof coverings
- Corrugated bituminous sheet coverings
- Patterned waterproof membrane
- Metal roof tiles
- PVC or metal rain gutters and drainage pipes
Insulation
Wall panels are insulated with ModuleTPor (EPS) for effective thermal performance. The roof insulation is provided using mattress-type glass wool.
Optional insulation materials:
Wall
- Glasswool
- Rockwool
Roof
- Rockwool
Paint
For the exterior walls, silicone paint is applied, while plastic paint is used for the interior walls.
Optional:
- Satin paint
- Patine paint
Windows
The windows are white in color, featuring a PVC frame and double glazing.
Optional:
- Colored and wood patterned PVC frame
- Colored and wood patterned aluminium frame
- Sliding or guillotine frame
- Tilt & turn frame
- Thermal insulated aluminium frame
- Aluminium or PVC roller shutters
- Insect screen
Doors
Exterior doors are made of galvanized steel and equipped with a cylinder lock for security. Interior doors are produced using MDF with a laminated finish.
Optional:
Exterior door:
- Aluminium / Steel / PVC / Fireproof door
Interior doors:
- Aluminium / American door (Steel sheet or wooden frame) / PVC / Fireproof door
Electrical Installation
The electrical installation includes lighting fixtures, switches, sockets, cables, cable channels, fuses, a fusebox, and a circuit breaker. It is installed on the surface.
Optional:
- Flush mounted installation
- Telephone line
- Data line
- UPS
- TV
- Fire detection system
- Alarm and smart building systems
Sanitary Installation
The sanitary installation includes a wall-mounted ceramic washbasin, an acrylic shower tray, a plastic WC with a flush tank, and a 50 x 100 cm kitchen cupboard with a chrome sink. The installation is surface mounted.
Optional:
- Flush mounted installation
- WC with ceramic flush tank
- Pedestal wasbasin
- Eastern WC
- Bathtub
- Special kitchen cabinet
- Fire extinguishing system
- Heating and Ventilation system

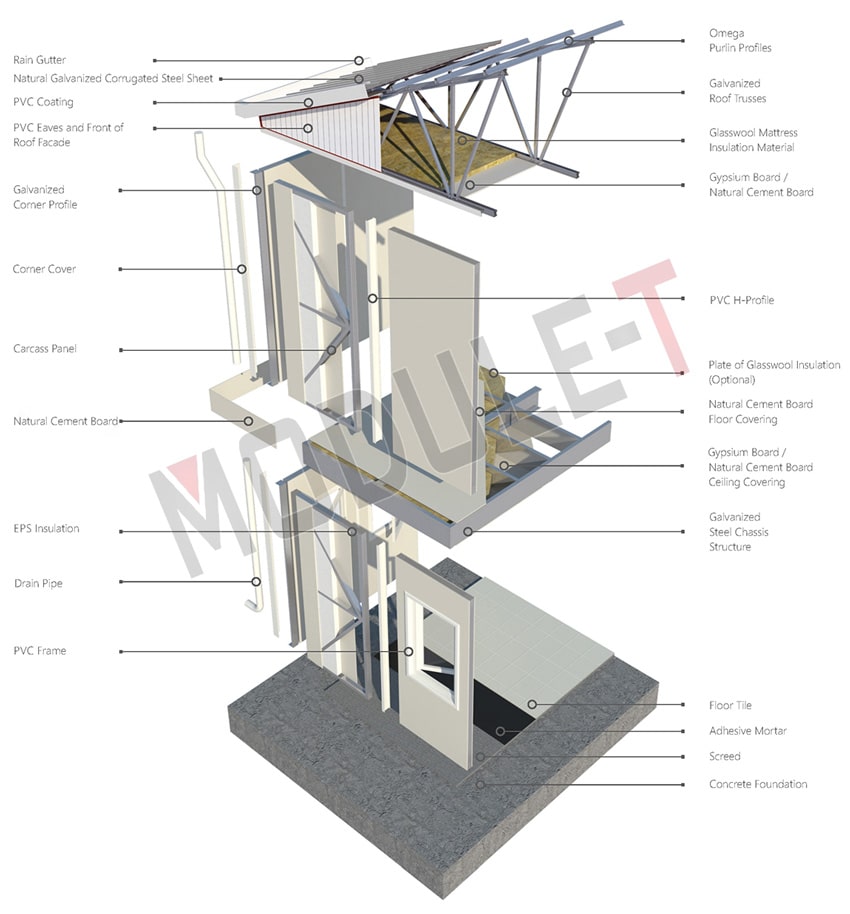

Cross Section of Carcass Panel System
